Small Vehicle Resource: Motrec Utility Vehicle: MX 480 Boom Crane

Enter Zip: or

Price & Warranty
Base Price	Contact Dealer

Powertrain
Battery (# of)	8
Battery Type	232 AH
Battery Voltage	6 volts
Charger	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
Controller	AC Electronic Speed Controller
Horsepower	15 hp
Motor	Brushless AC
Voltage	48 volts

Body & Chassis
Body Material	Powder Coated Steel
Windshield	No
Body Construction	Unibody

Suspension & Wheels
Suspension Front	Dual Leaf Springs
Suspension Rear	Dual Leaf Springs
Steering	Automotive Steering Wheel
Tires Front Size	5.70 x 8
Tires Rear Size	5.70 x 8
Tires Front Material	LRD Pneumatic
Tires Rear Material	LRD Pneumatic
Brakes Rear	Hydraulic Drum
Parking Brake	Electromagnetic Parking Brake with Manual Hand Release
Num Wheel	4

Safety Features
Seat Belts	Yes
ROPS	No
Seat Belt Type	Lap Belts
Headlights	Yes
Headlights Type	Dual LED Headlights
Horn	Yes
Bumpers	Yes
BumperType	Bolt-on Front Bumper
Safety Options	Standard: Brake and Tail Light, Reverse Alarm, Deadman Seat Switch

Transmission & Driveline
Drive Unit/Differential	Helical gear differential
Engine-braking	Regenerative Braking
Transmission	Direct Drive

Dimensions
Length	130.5 in
Width	47.5 in
Height	88 in
Wheelbase	72 in

Performance
Ground Speed Forward	10 mph
Turning Radius	12.5 ft
Cargo Box/Deck Capacity	2000 lb
Towing Capacity	6000 lb

Interior
Seating Type	Bucket Seats with Slide Adjusters
Instrumentation	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Power Steering	No
Cup Holders	Optional
Glove Box	Optional
Seating Capacity	2
Heating	Optional

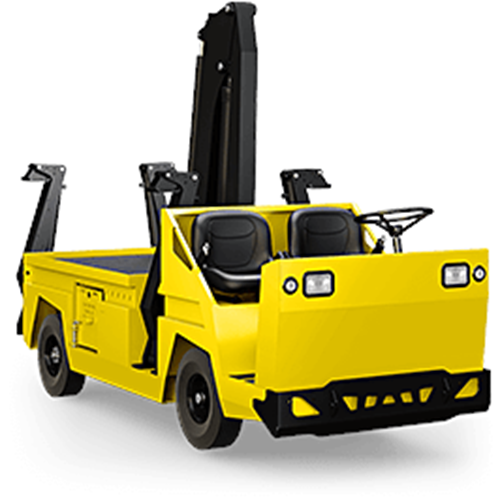

Motrec MX 480 Boom Crane

Base Price: Contact Dealer

The Motrec MX 480 Boom Crane is designed to lift and haul heavy loads and fit into tight spaces with a 12.5' turning radius. Standard features include four hydraulic outriggers, a 48V powertrain with a 15 hp AC motor, hydraulic drum brakes, dual LED headlights and tail and brake lights.
