Small Vehicle Resource: Taylor-Dunn Utility Vehicles: Maintenance Expediter MX-1600

Enter Zip: or

Price & Warranty
Base Price	Contact Dealer

Powertrain
Battery (# of)	6
Battery Capacity	217 ah
Battery Type	lead-acid
Battery Voltage	6 volts
Charger	25 amp, 36 volt built-in automatic charger with interlock
Controller	SEM
Horsepower	6.6 hp
Motor	DC
Voltage	36 volts

Body & Chassis
Body Material	Steel, Heavy Duty 14 Gauge Smooth Plate
Windshield	Optional
Windshield Material	Optional with Cab
Frame Material	Steel
Body Construction	Unitized Body
Frame Construction	Fully Welded
Hitch Front	No
Hitch Rear	Yes
Body Options	Standard: Integrated Toolbox, Ladder Rack, Vise

Suspension & Wheels
Suspension Front	Leaf Springs
Suspension Rear	Leaf Springs
Steering	Manual, Re-Circulating Ball
Tires Front Size	5.7 x 8
Tires Rear Size	5.7 x 8
Tires Front Material	Pneumatic
Tires Rear Material	Load Range C, Pneumatic
Brakes Rear	Mechanical Drum
Parking Brake	Hand Brake
Num Wheel	4

Safety Features
Seat Belts	No
ROPS	No
Safety Mirrors	Optional
Safety Mirrors Position	Side and Rearview with Cab
Headlights	Yes
Headlights Type	Single Headlight
Horn	Yes
Bumpers	No
Safety Options	Strobe Light and Turn Signals

Transmission & Driveline
Transaxle	Direct gear drive
Transmission	Oil bath helical gears

Dimensions
Length	107.95 in
Width	44.29 in
Height	47.5 in
Wheelbase	50.5 in
Dry Weight	1420 lb

Performance
Turning Radius	9.2 ft
Cargo Box/Deck Dimensions	63x44

Interior
Seating Type	Bench
Seating Material	Vinyl
Instrumentation	Battery status indicator, forward/reverse selector, key switch, electric horn
Power Steering	No
Air Conditioning	No
Cup Holders	No
Glove Box	No
Seating Capacity	2
Heating	No

Major Options
Fiberglass Cab
Rear and Side View Mirrors
Vinyl Doors
Windshield Wiper for Cab
Amber Strobe Light (On pole or top of cab)
Directional Signals
Automatic Coupling,Trailer
Ball Hitch and Bracket
Pintle Trailer

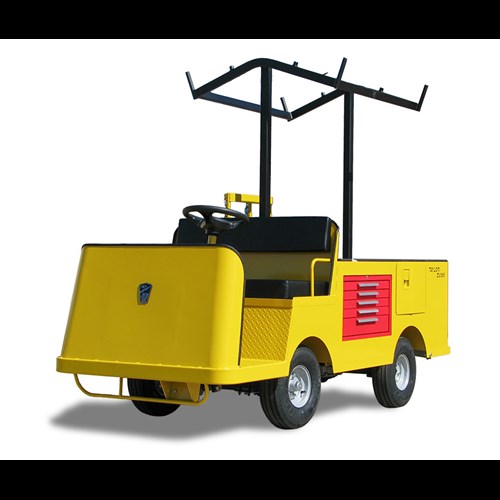

Taylor-Dunn Maintenance Expediter MX-1600

Base Price: Contact Dealer

The Taylor-Dunn MX-1600 is designed to move a repairman, tool chest, and workbench to down equipment in less than one-third of the time required by conventional methods. Equipped with 36-volt battery system, the MX-1600 can travel up to 12 mph, has a 20 mile range, a 1,000 lb. load capacity and 7,500 lb. towing capacity.
