Small Vehicle Resource: Motrec Tow Tractor: MT 290 24V Narrow

Enter Zip: or

Price & Warranty
Base Price	Contact Dealer

Powertrain
Battery (# of)	4
Battery Capacity	232AH ah
Battery Voltage	6 volts
Charger	High frequency charger
Controller	SEPEX Electronic speed controller
Horsepower	6 hp
Motor	Shunt Motor
Voltage	24 volts

Body & Chassis
Body Material	14-G diamond-plate steel body
Windshield	No
Frame Material	Steel
Frame Construction	Tubular Frame
Hitch Rear	Yes

Suspension & Wheels
Suspension Rear	Dual Coil Springs and Shock Absorbers
Steering	Automotive Steering Wheel
Tires Front Size	4.8 x 8
Tires Rear Size	4.8 x 8
Tires Front Material	Pneumatic, LRC
Tires Rear Material	Pneumatic, LRC
Brakes Rear	Self-adjusting Mechanical Drum brake
Parking Brake	Hand lever parking brake
Num Wheel	4

Safety Features
Seat Belts	No
ROPS	No
Safety Mirrors	No
Headlights	Yes
Headlights Type	LED Headlight
Horn	Yes
Bumpers	Yes
BumperType	Bolt-on Front Bumper
Safety Options	Standard: Brake and Tail Light, Reverse Alarm, Deadman Seat Switch

Transmission & Driveline
Drive Unit/Differential	Differential with automotive ring gear
Engine-braking	Regenerative Braking
Transmission	Dual V-belt drive

Dimensions
Width	29 in
Height	45 in
Wheelbase	52 in

Performance
Ground Speed Forward	6 mph
Turning Radius	6 ft
Cargo Box/Deck Capacity	500 lb
Cargo Box/Deck Dimensions	20x29
Towing Capacity	6000 lb

Interior
Seating Type	Bucket seat on slide adjusters
Instrumentation	Battery Status Indicator
Power Steering	No
Air Conditioning	No
Cup Holders	No
Glove Box	No
Seating Capacity	1
Heating	No

Major Options
Rear Wheel Guards
24V accessories to equalize cells and extend battery life

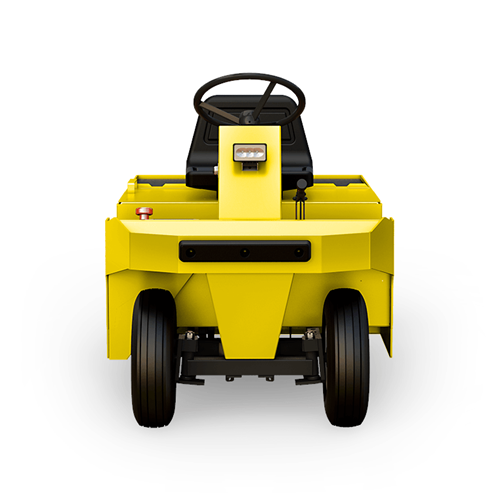

Motrec MT 290 24V Narrow

Base Price: Contact Dealer

The Motrec MT 290 24V Narrow is a four-wheeled tow tractor that features a 6 hp electric motor, 500 lb. load capacity, 6,000 lb. towing capacity and top speed of 6 mph. Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor is only 29" wide and effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tugger boasting a long-lasting industrial battery with easy under-the-seat access.
